Descripción

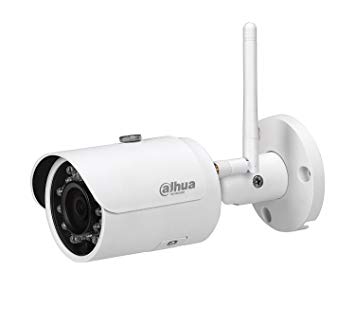

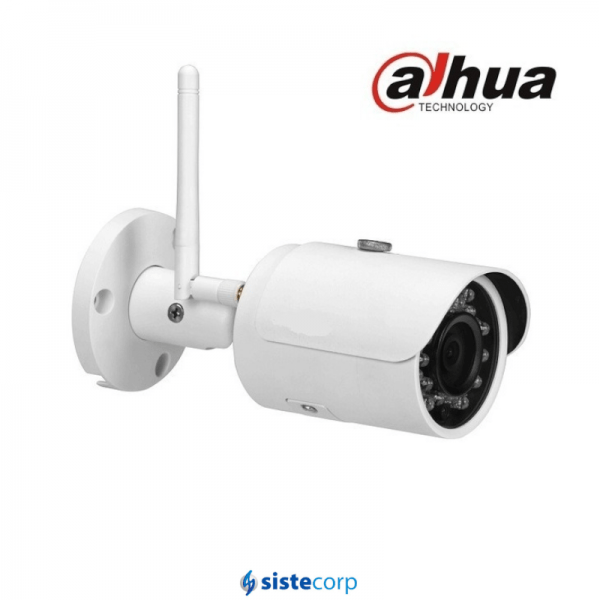

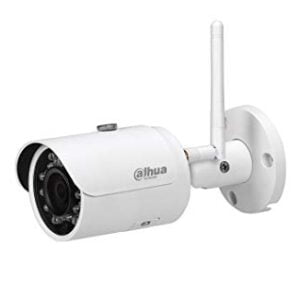

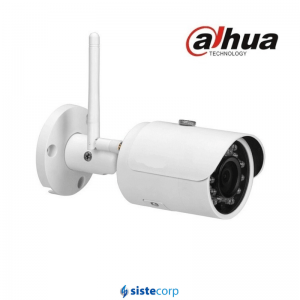

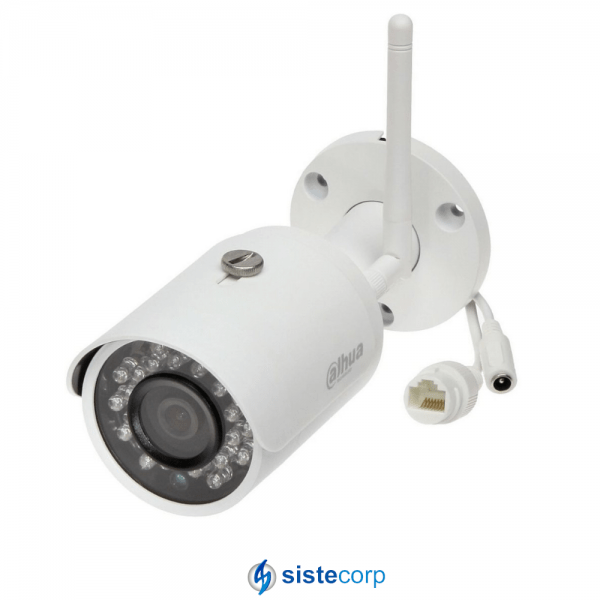

Part number: IPCHFW1320SP-W-0280B
http://pl.dahuasecurity.com/pl/products/ipc-hfw1320s-w-5631.html

Información adicional

ESPECIFICACIONES

Camera

Image Sensor: 1/3” 3Megapixel progressive CMOS
Effective Pixels: 2304(H) x1536(V)
RAM/ROM: 256MB/16MB
Scanning System: Progressive
Minimum Illumination: 0.1Lux/F2.0(Color), 0Lux/F2.0(IR on)
S/N Ratio: More than 50dB
IR Distance: Distance up to 30m(98ft)
IR On/Off Control: Auto/ Manual
IR LEDs: 24

Lens

Lens Type: Fixed
Mount Type: Board-in
Focal Length: 2.8 mm (3.6 mm optional)
Max. Aperture: F2.0/F2.0
Angle of View: H:100°/77°, V:55°/42°
Focus Control: Fixed
Close Focus Distance: N/A

PTZ

Pan/Tilt Range: Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°

Video

Compression: H.264/H.264B/H.264H/MJPEG
Streaming Capability: 2 Streams
Resolution:3M(2304×1296)/1080P(1920×1080)/1.3M(1280×960)/720P(180×720)/720P(1280×720)/VGA(640×480)/QVGA(320×240)
Frame Rate : 3M(1 ~ 20fps)/2M (1 ~ 25/30fps) VGA(1 ~ 25/30fps)
Bit Rate Control: CBR/VBR
Bit Rate: H264:32K ~ 10Mbps
Day/Night: Auto(ICR) / Color / B/W
BLC Mode: BLC / HLC / DWDR
White Balance: Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control: Auto/Manual
Noise Reduction: 3D DNR
Motion Detection: Off / On (4 Zone, Rectangle)
Electronic Image: Support
Smart IR: Support
Digital Zoom: 16x
Flip: 0°/90°/180°/270°
Mirror: Off / On
Privacy Masking: Off / On (4 Area, Rectangle)

Audio

Compression: N/A

Network

Ethernet: RJ-45 (10/100Base-T)
Wi-Fi: Wi-Fi(IEEE802.11b/g/n),50m(open field)
Protocol:HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTDHCP;DNS;DDNS;IPv4/v6;QoS;UPnP;NTP;Bonjour;Multicast;ICMP;IGMP;
Interoperability: PSIA, CGIStreaming Method: Unicast / Multicast
Max. User Access: 10 Users/20 Users

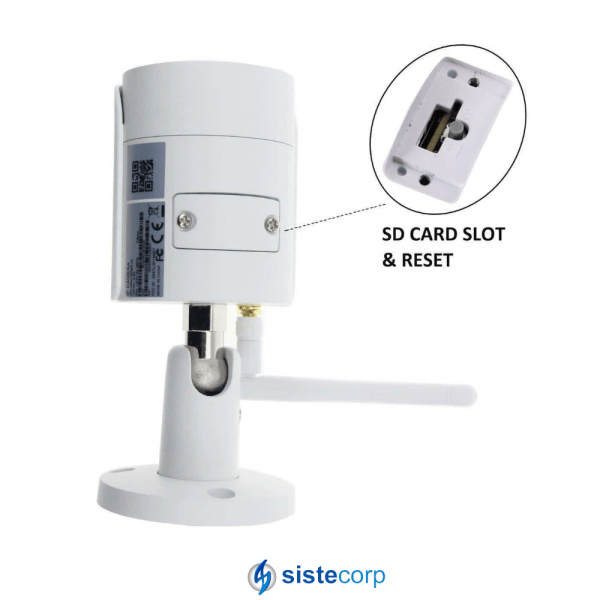

Edge Storage: NAS(Network Attached Storage) Local PC for instant recording, Micro SD Card 128GB
Web Viewer: IE, Chrome, Firefox, Safari
Management Software: Smart PSS, DSS, Lechange
Smart Phone: iOS, Android

Certifications

Certifications: CE (EN 60950:2000) UL:UL60950-1: FCC: FCC Part 15 Subpart B

Interface

Video Interface: N/A
Audio Interface: N/A
RS485: N/A
Alarm: N/A

Electrical

Power Supply: DC12V
Power Consumption: <4.4W Environmental Operating Conditions: -10° C ~ +50° C (14° F ~ +122° F) / Less than 95% RH Strorage Conditions: -10° C ~ +50° C (14° F ~ +122° F) / Less than 95% RH Ingress Protection: IP67 Vandal Resistance: N/A Construction Casing: Metal+Plastic Dimensions: Φ70mm×164.7mm(2.76''x6.49'') Net Weight: 0.43Kg (0.95lb) Gross Weight: 0.52Kg (1.158lb)

FICHA TECNICA PDF
