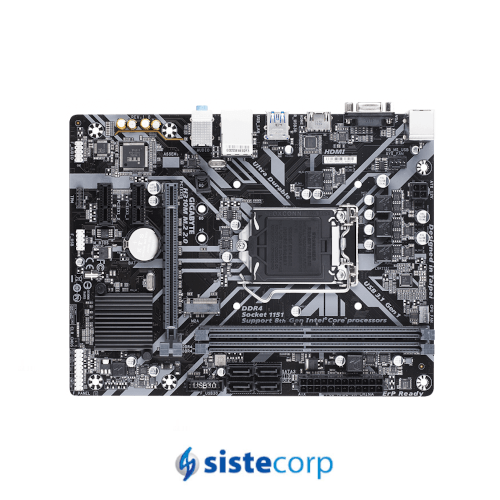

PLACA MADRE GIGABYTE S1151 H310M M.2 2.0 BOX M-ATX (H310M M.2 2.0)

$84.036

Disponibilidad: Agotado SKU: 003512 Categoría: Brand: Gigabyte

Descripción

Part number H310M M.2 2.0

Información adicional

Marca

GIGABYTE

CARACTERISTICAS

  • CPU
    1. Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
    2. L3 cache varies with CPU

    (Please refer “CPU Support List” for more information.)


  • Chipset
    1. Intel® H310 Express Chipset
    2.
  • Memory
    1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
    2. Dual channel memory architecture
    3. Support for DDR4 2666/2400/2133 MHz memory modules
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules
      * To support 2666 MHz or XMP memory, you must install a 9th or 8th Generation Intel® Core™ i9/i7/i5 processor.

    (Please refer “Memory Support List” for more information.)


  • Onboard Graphics

    Integrated Graphics Processor-Intel® HD Graphics support:

    1. 1 x D-Sub port, supporting a maximum resolution of 1920×1200@60 Hz
    2. 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
      * Support for HDMI 1.4 version and HDCP 2.2.

    Maximum shared memory of 1 GB


  • Audio
    1. Realtek® ALC887 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
    4.
  • LAN
    1. Realtek® GbE LAN chip (10/100/1000 Mbit)
    2.
  • Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16
      (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
    2. 2 x PCI Express x1 slots
      (The PCI Express x1 slots conform to PCI Express 2.0 standard.)
    3.
  • Storage Interface

    Chipset:

    1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x2 SSD support)
    2. 4 x SATA 6Gb/s connectors
    3.
  • USB

    Chipset:

    1. 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    3.
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 4 x SATA 6Gb/s connectors
    4. 1 x CPU fan header
    5. 1 x system fan header
    6. 1 x front panel header
    7. 1 x front panel audio header
    8. 1 x USB 3.1 Gen 1 header
    9. 1 x USB 2.0/1.1 header
    10. 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
    11. 1 x Clear CMOS jumper
  •
    Back Panel Connectors
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x D-Sub port
    3. 1 x HDMI port
    4. 2 x USB 3.1 Gen 1 ports
    5. 4 x USB 2.0/1.1 ports
    6. 1 x RJ-45 port
    7. 3 x audio jacks
  •
    I/O Controller
    1. iTE® I/O Controller Chip
  •
    H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Overheating warning
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  •
    BIOS
    1. 1 x 128 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  •
    Unique Features
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      AutoGreen
      Cloud Station
      EasyTune
      Fast Boot
      Game Boost
      ON/OFF Charge
      Platform Power Management
      Smart Backup
      Smart Keyboard
      System Information Viewer
      USB Blocker
    2. Support for Q-Flash
    3. Support for Xpress Install
  •
    Bundled Software
    1. Norton® Internet Security (OEM version)
    2. Realtek® 8118 Gaming LAN Bandwidth Control Utility
  •
    Operating System
    1. Support for Windows 10 64-bit
  •
    Form Factor
    1. Micro ATX Form Factor; 22.6cm x 17.4cm
